- Place of Origin: BINZHOU, CHINA
- Brand Name: YEHUI
- Model Number: PPGI-1

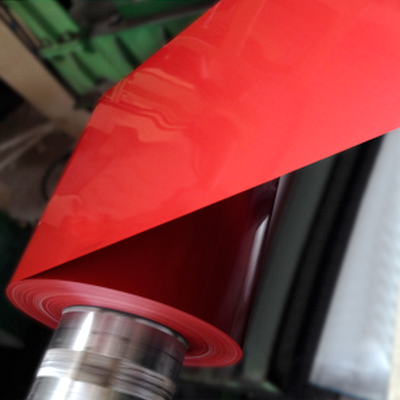

PPGI/Prepainted Galvanized Steel Sheet in Coils
PPGI/Prepainted Galvanized Steel Sheet in Coils is made by taking hot galvanized sheet and zinc-iron alloy hot galvanized steel sheet as the substrate through surface pretreatment, coating one or more layers of liquid coating by roll coating, baking and cooling. the used coatings including polyester, silicon modifided polyester, high-durability polyester, polyvinylidene fluoride, epoxy and high cossosion-resisting coating are widely used for building, transport, home applicances, solar energy, furniture, etc, it is mainly used as the side door plate of refrigerators, and shell of DVDs, air conditionings, freezers, and washing machines.
The color of the Color Coated Steel Coil has a very wide selection, like orange, cream-colored, dark sky blue, sea blue, bright red, brick red, ivory white, porcelain blue, etc.
The Color Coated Steel Coil can also be classified into groups by their surface textures, namely regular prepainted sheets, embossed sheets and printed sheets.
- Place of Origin: BINZHOU, CHINA
- Brand Name: YEHUI
- Model Number: PPGI-1
| PRODUCT | PPGI/Prepainted Galvanized Steel Sheet in Coil |
| STANDARD | GB/T-12754: 2006, JIS330, ASTM A653, JIS G330, GB/T2518, ASTM A792, JIS G3321, JIS G3317 |
| BASE METAL | Hot dipped Galvanized steel sheet/coil, Hot dipped Galvalume steel sheet/coil |
| EQUIPMENT | 1,Each bare coil to be securely tied with two bands through the eye of coil (or not) and one circumferential. |
| SUPPLY CAPACITY | 5000 Tons per Month |
| SIZE | Thickness 0.11mm-3mm, width 35mm—1500mm; if special Specs, please inform us about that |
| ZINC COATING | 30g/m2-275g/m2 |
| PAINT THICKNESS | Top: 10-25 microns; Back: 4-8 microns |
| COIL WGT | normally 5 Tons per Coil, aslo as required by customer |
| COIL ID | 508mm/610mm |
| SURFACE PAINT | EP, PE, HDP, SMP, PVDF |
